How Does Commercial Flooring Affect Construction Documents (CD) Set Production?

Flooring is never as simple as it looks on the finish schedule. For architects and project teams working through Construction Documents (CDs), commercial flooring is one of those elements that seems minor at Design Development and then becomes one of the most detail-heavy, cross-disciplinary parts of the entire drawing set.

Here’s why that happens, what it means for your CD set, and how to keep flooring from becoming a bottleneck between design intent and a buildable, permit-ready package.

What Is a CD Set, Exactly?

A CD set is the complete package of construction drawings, specifications, and schedules used for permitting, bidding, and building a project. It’s the third major phase of the architectural design process, following Schematic Design (SD) and Design Development (DD), and it’s the phase where every material, dimension, and system decision gets locked down in enough detail that a contractor can actually price and build from it.

According to BluEnt, a CD set typically includes annotated floor plans, elevations, and sections, plus detailed specifications for materials and finishes, and coordinated MEP and structural documentation. On larger projects, this isn’t a single deliverable but a progression:

• 50% CD set — early coordination and rough dimensioning
• 75% CD set — assemblies and systems substantially resolved
• 95% CD set — near-final detailing and cross-checking
• 100% CD set — permit- and bid-ready package

Flooring runs through nearly every stage of that progression. It isn’t one drawing — it’s a thread that connects floor plans, finish schedules, sections, details, and often structural and MEP sheets too.

Why does Commercial Flooring Complicate CD Sets?

Commercial flooring complicates CD sets because it isn’t just a finish material — it’s a system that has to be documented for performance, not just appearance. Residential-style thinking doesn’t hold up here, where flooring must perform under regulatory, structural, and operational demands.

According to Premiere Flooring Systems (PFS), one of the most common mistakes in commercial flooring specification is writing a finish schedule without a systems approach — treating flooring as a single line item instead of a coordinated assembly of substrate, adhesive, underlayment, and wear surface. The real risk usually is below the visible surface: moisture conditions, slab flatness, rolling loads, cleaning protocols, and installation sequencing all have to be addressed in the documents, not assumed.

That’s the core reason flooring punches above its weight in CD production. A wall finish might need a paint spec and a few notes. A commercial floor might need a slab moisture testing requirement, a transition detail at every material change, a static-control rating, and a coordination note with the structural engineer about point loads — all before a contractor can even bid accurately.

How Flooring Gets Documented Inside a CD Set

Flooring is documented through finish schedules, material specifications, transition and termination details, and cross-referenced notes on floor plans and sections. Each piece has to align, or the set creates confusion — and RFIs — once it hits the field.

• Finish schedules: A room-by-room table listing exactly what flooring material goes where, cross-referenced to a legend or code on the floor plan
• Material specifications: Detailed callouts covering product, thickness, wear layer, adhesive type, and installation method (PFS notes that performance differences in adhesives, thickness, and wear layer can be significant even between seemingly equivalent products)
• Transitions and terminations: Details showing exactly how one flooring type meets another (carpet to tile, vinyl to polished concrete, interior to exterior); PFS specifically flags this as an area that gets under-detailed, later affecting safety, cleanability, and durability
• Entry systems and matting: Enough detail on matting length, placement, and integration with adjacent flooring so the protective intent doesn’t quietly disappear once a contractor value-engineers it out

When any one of these pieces is missing or unclear, it doesn’t just create an aesthetic gap— it creates a coordination gap that shows up later as a change order.

What Slab and Substrate Conditions Need to Be Addressed?

Flooring failures usually start below the surface, not on top of it, so CD sets need to document substrate conditions as rigorously as the finished flooring itself.

According to PFS, one of the most common commercial flooring mistakes is assuming all concrete is automatically ready to receive flooring. In reality, moisture content, curing time, and flatness tolerances vary significantly from slab to slab. If the CD set doesn’t call out testing requirements or acceptable tolerances, the flooring installer and general contractor have no shared standard to work from — and that gap tends to surface only after the floor is installed and starting to fail.

Commercial flooring also diverges from residential work at the assembly level. According to CloudsFlooring, commercial flooring typically requires a multi-layered build using denser, more stable materials because commercial spaces have to withstand pressure and traffic that residential flooring was never engineered for. A dense SPC (stone plastic composite) core, for example, resists indentation from heavy static loads — a real consideration in offices, hospitals, and retail spaces where furniture or equipment sits in one place for years. None of that performance shows up automatically; it has to be specified and documented.

Does Flooring Documentation Need to Address Code and Compliance?

Yes — commercial flooring in a CD set has to satisfy accessibility, safety, and performance codes, and those requirements need to be spelled out explicitly rather than left to interpretation:

• Slip resistance ratings
• ADA-compliant transition heights between flooring materials
• Fire ratings for certain occupancies
• Static-control requirements in technical spaces

According to PFS, when a facility needs ESD (electrostatic discharge) flooring, sports surfacing, conductive systems, or chemical-resistant coatings, the documentation has to be far more exact than a standard finish schedule entry — vague specs don’t hold up against inspection or performance testing later.

The stakes are real. Slips, trips, and falls account for roughly 30% of all reported U.S. workplace injuries, and the commercial flooring market continues to shift toward slip-resistant and antimicrobial products precisely because of that exposure. Getting compliance wrong doesn’t just risk a failed inspection — it risks a mid-construction redesign, exactly the kind of costly, schedule-killing event a well-documented CD set is supposed to prevent.

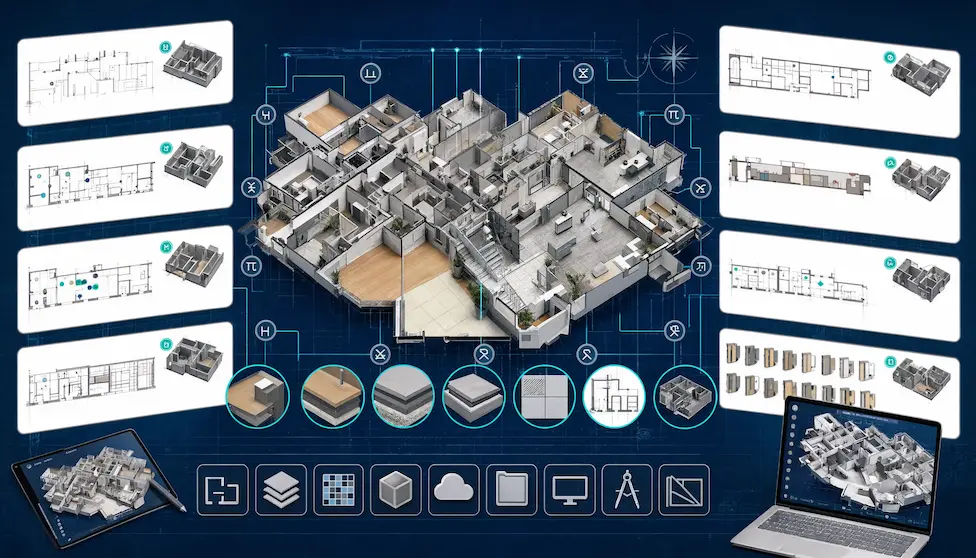

How Flooring Affects Coordination With Other Disciplines

Flooring decisions ripple into structural and MEP drawings, so flooring documentation can’t be finalized in isolation from the rest of the CD set.

● Structural Coordination

Heavy flooring assemblies, rolling loads (carts, forklifts, medical equipment), and point loads from fixed equipment all need to be checked against the structural design — particularly on elevated slabs, where the structure must be verified to support these combined static and dynamic loads.

● MEP Coordination

Radiant heating systems, floor boxes for power and data, and floor drains all have to be resolved with the flooring plan before finishes are finalized. Moving a floor drain after the tile layout is already set creates rework nobody wants to deal with.

● Multi-trade Sequencing

According to Advenser, construction documentation services specifically include coordination across architectural, structural, and MEP disciplines to reduce conflicts before construction starts. Catching a clash on paper during design is dramatically cheaper than discovering it on site.

What Happens When Flooring Is Under-Specified?

Under-specified flooring details are a documented source of RFIs, rework, and cost overruns during construction — and the industry-wide numbers back that up:

• Poor project data and miscommunication together drive 48% of all construction rework — 26% from poor communication and 22% from poor project data — translating to an estimated $31.3 billion in annual rework costs industry-wide, according to an Autodesk and FMI study.
• The average RFI costs roughly $1,080 to process and takes 6–10 days to resolve, per Navigant Construction Forum data cited across multiple industry sources.
• The Construction Industry Institute’s cost-escalation research shows that the cost of fixing an error multiplies roughly 10x at each project phase — a $100 design-phase fix becomes a $1,000 fix during construction and a $10,000 fix after occupancy.

Applied to flooring, the pattern is predictable: a finish schedule that skips substrate requirements becomes a problem. A missing transition detail becomes a problem. A spec that treats two different products as “equivalent,” without checking adhesive or thickness differences, becomes a problem too. Each one turns into an RFI the moment a contractor hits it in the field.

It’s also worth remembering that a CD set is rarely 100% precise on day one in practice — it’s meant to represent a fully complete plan. Still, field conditions and supplemental instructions inevitably adjust it. Good flooring documentation doesn’t eliminate every field adjustment, but it dramatically shrinks the number of adjustments caused by something that was simply never resolved on paper.

Does Sustainability Factor Into Flooring Documentation?

Increasingly, yes — sustainable, low-impact flooring materials are showing up in commercial specs, and CD sets need to document them just as precisely as any other material. According to Primera, businesses are specifying more eco-friendly commercial flooring — bamboo, cork, recycled-content products — valued for their reduced environmental footprint and acoustic or insulating properties. When these materials show up in a CD set, they typically carry their own documentation requirements: certifications, VOC content limits, and maintenance protocols that have to be captured in the specs alongside standard performance data.

Commercial Flooring Types and Their Documentation Load

The flooring material itself changes how much documentation it demands, since each type carries its own substrate, performance, and detailing requirements.

Flooring Type	Common Commercial Use	Documentation Priorities
LVP/VCT	Retail, medical offices, restaurants	Subfloor moisture limits, adhesive type, wear-layer thickness
Polished concrete	Industrial showrooms, breweries, retail	Flatness tolerances, joint layout, sealer specification
Carpet tile	Offices, standing/walking-heavy spaces	Seaming patterns, direction-of-lay diagrams, and moisture barriers
Rubber flooring	Gyms, healthcare, high-slip-risk areas	Discoloration and maintenance notes (UV exposure, cleaning cycles)
Hardwood / engineered wood	Offices, hospitality, boutique retail	Moisture acclimation notes, expansion joints, finish coat specs

According to BOSS Publishing, LVP resists moisture, scratches, and stains while mimicking wood or stone, which is why it’s a common high-traffic choice. Polished concrete, by contrast, shifts the documentation burden almost entirely onto the slab itself, since there’s no separate finish material masking substrate imperfections. Rubber flooring is frequently specified for slip resistance and sound absorption — a demand reflected in a slip-retardant flooring market that continues to expand as safety codes tighten.

How Flooring Affects Cost Estimating and Bid Accuracy

Well-documented flooring specifications directly improve bid accuracy, while vague or incomplete flooring details invite wide-ranging, inconsistent bids from contractors.

According to BOSS Publishing, flooring choices don’t require a luxury budget to look good. Still, they do need to match traffic volume, brand aesthetic, and maintenance capacity — and all three factors need to be legible in the CD set for a contractor to bid accurately. If the finish schedule lists a product without specifying installation method, substrate prep, or transition detailing, contractors fill the gaps with their own assumptions. Those assumptions rarely match each other, which is exactly how a single line-item flooring spec turns into bids that vary by tens of thousands of dollars for what looks, on paper, like the same floor.

How BIM Changes Flooring Documentation in CD Sets

What is BIM? Building Information Modeling lets flooring be modeled, coordinated, and quantified digitally before it’s ever drawn into the final CD set — exactly where a lot of flooring-related errors used to get caught too late.

BIM changes flooring documentation by letting teams catch clashes, calculate quantities, and update schedules digitally before drawings are ever finalized.

According to MaRS BIM Solutions, BIM technology helps teams develop comprehensive, accurate CD sets that reflect true design intent, with the modeling work supporting clash detection and interdisciplinary coordination before drawings are finalized. In practice, that means:

● BIM Helps with Clash Detection

The software flags conflicts, such as a floor drain colliding with a structural beam or a point-load issue affecting the flooring assembly, directly inside the digital model, so problems are resolved during design rather than discovered mid-installation

● Automated Quantity Takeoffs

Because the model contains detailed information about every flooring component, accurate material counts for flooring, adhesive, and underlayment can be pulled directly from it, removing the need to hand-calculate from a 2D plan.

● Coordinated Finish Schedules

The model links each flooring assembly to its corresponding room data, so a material change flows through automatically to every drawing and schedule that references it.

● General Arrangement Drawing in BIM

In a BIM general arrangement drawing, floor layouts, room data, and finish call-outs stay synchronized as a single source of truth rather than six sheets someone has to remember to update by hand.

● Cloud-Based BIM

BIM integrated within the cloud gives structural, MEP, and architectural teams simultaneous access to the same live model, so a flooring change is visible to every discipline the moment it happens, not after the next drawing issue

Conclusion

Commercial flooring looks like a small line item on a finish schedule. By the time a CD set is complete, it has touched structural drawings, MEP coordination, code compliance notes, and transition details most people overlook until something doesn’t line up on site.

Teams that avoid flooring RFIs are the ones that document substrate conditions, specify transitions, coordinate across disciplines, and use BIM to catch conflicts early.

If your next CD set includes commercial flooring, treat it as a coordinated system, not a finished decision. BIM Modeling offers BIM services that make that coordination reliable — partner with us to keep your documentation tight and eliminate unforeseen situations in the field.

FAQs

What does “CD” mean in CD set production?

CD stands for Construction Documents — the phase of the architectural design process that produces the complete drawing and specification package used for permitting, bidding, and building a project.

Who is responsible for slab moisture testing, the architect or the contractor?

The architect specifies the required testing method and acceptable moisture thresholds in the CD set. The general contractor or flooring installer then performs the testing and certifies results before installation begins, per the documented requirements.

Does LEED certification affect how flooring is documented in a CD set?

Yes. LEED projects require documenting VOC emissions, recycled content percentages, and material sourcing data directly in the specifications, including manufacturer certifications and testing data to support point submissions during certification review.

When should flooring specifications be finalized relative to other CD milestones?

Flooring specs should be substantially resolved by the 75% CD milestone, since structural and MEP coordination depend on finalized assembly thicknesses and load data. Waiting until 95% often forces costly last-minute revisions across multiple drawing sets.

What building codes govern commercial flooring beyond ADA requirements?

The International Building Code (IBC) governs slip resistance, fire ratings, and flame-spread classifications for commercial flooring. Local jurisdictions may add stricter requirements, so architects should verify applicable codes early rather than assuming national standards apply everywhere.

How does flooring warranty documentation factor into the CD set?

Manufacturer warranties often require specific installation methods, substrate conditions, and adhesive products to remain valid. CD sets should reference these warranty conditions explicitly, since deviations during construction can void coverage without the owner or architect realizing it happened.
